Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: MASTER
  • Model Number: DY2500LBI
  • Output Type: AC Single Phase
  • Speed: 5500rpm
  • Frequency: 50 / 60Hz, 50/60Hz
  • Rated Power: 2.2KW
  • Rated Voltage: 100V,110V,120V,220V,230V,240V,110/220V,120/240V
  • Rated Current: 12V/8.3A
  • Max. AC Output: 2.5KW
  • Rated AC Output: 2.2KW
  • Rated AC Voltage: 100V,110V,120V,220V,230V,240V
  • DC output: 12V/8.3A
  • Fuel: gasoline / petrol
  • Fuel Tank Capacity: 5.7L
  • Continuous Operating Hours: 4.2h (100% Loading)
  • Oil: SAE 10W-30 Above SJ Grade
  • Starting System: Recoil/electirc

Packaging & Delivery

Packaging Details Carton;One piece in a carton,able to provide colourful package according to your design.
Delivery Time 15-25days after received T/T payment.


Product Description

PRODUCT SPECIFICATION


TypeGasoline Inverter Generator
Frequency (Hz) :50 / 60
Max. AC Output (kW) :2.5
Rated AC Output (kW) :2.2
Rated AC Voltage (V) :100, 120, 230, 240
DC output:12V-8.3A
Power Factor (cosφ) :1
Engine Model:XY152F-3
Type:Forced Air-cooled, 4-storke, OHV
Displacement (cc) :125
Bore×Stroke (mm) :52.4×57.8
Max. Output (kW/rpm) :3.4 / 5000
Fuel:Unleaded Gasoline
Fuel Tank Capacity (L) :5.7
Continuous Operating Hours (h):4.2(100% Load)
Oil:SAE 10W-30 Above SJ Grade
Oil Capacity (L) :0.9
Ignition System :C.D.I.
Starting System :Recoil Starter
Operating Noise Level (7m)dB :60
Net Dimension: L×W×Hmm565×320×460
Overall Dimension: L×W×Hmm595×355X 510
Net Weight (kg) :29
Dry weight (kg) :31
Quantity(20FT)240 units
Quantity(40FT)496 units
Quantity(40HQ)615 units

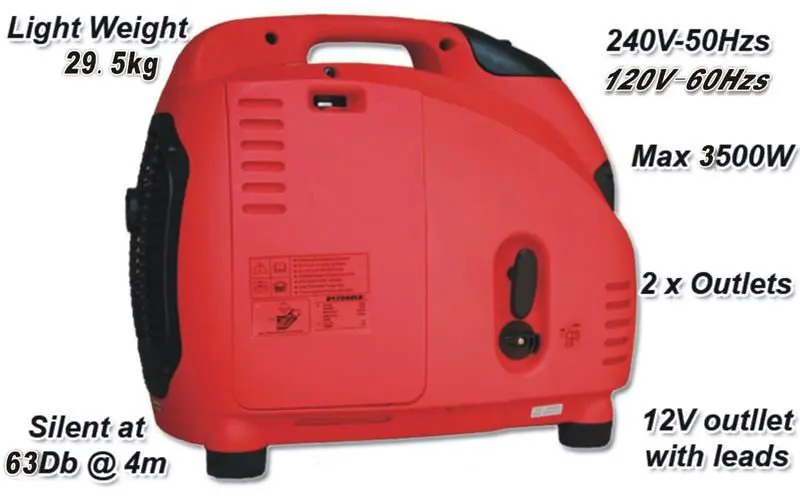

DETAIL PICTURE




1. 100% pure sine wave: High-quality power output, more safety and reliability. Provide clean power run electronic devices such as computers, televisions,microwaves.

2. Save on fuel: Save on fule by automitically adjusting the engine speed to produce only the power you need.

3. Quiet runningNew Mufflen design, excellent duel soundproof struction. Only 58dB.

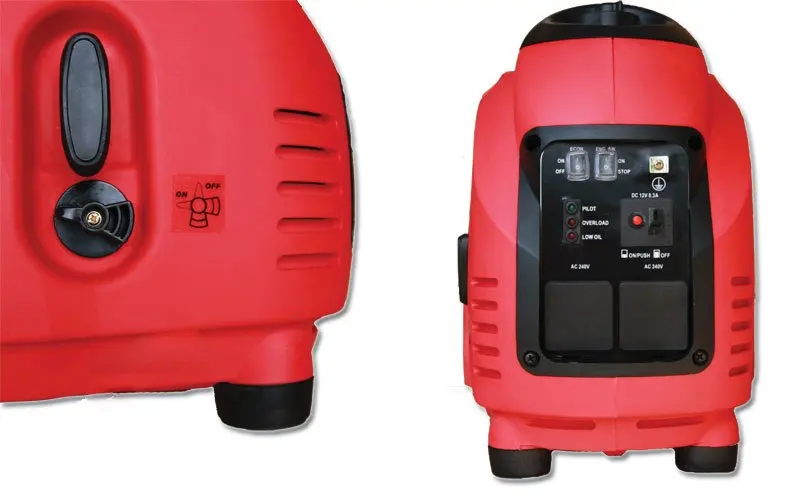

4. Easy operation panel: easy to operate, maintain and repair.

5. Easy lift: Very light

6. Electronic Overload Pretection

7. Low oil indication

8. Automatically shut-off to avoid damage to alternator when there is short circuit happened inside the alternator.
