Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: MASTER
  • Model Number: DY1200LBI
  • Output Type: AC Single Phase
  • Speed: 5000rpm
  • Frequency: 50 / 60Hz
  • Rated Power: 1.0KVA
  • Rated Voltage: 120V/230V / 240V
  • Rated Current: 12V/4.0A
  • Max. Output: 2.1Kw/5000rpm
  • Displacement: 72cc
  • Approbate: GS, CE, Europe-II, EPA
  • ENGINE Type: Forced Air-cooled, 4-storke,OHC
  • BorexStroke: 47x41.5 mm
  • Fuel Tank Capacity: 3.6L
  • Continuous Operating Hours: 4.3h(full load)
  • Ignition System: T.C.I.
  • Starting System: Recoil
  • Net Weight: 18.5kg

Packaging & Delivery

Packaging Details Carton;One piece in a carton,able to provide colourful package according to you design.
Delivery Time 15-25days after received T/T payment.

Specifications

1.0KW rated, 1.2KW max power inverter generator with powerful 49CC engine
Approbate:GS, CE, Europe-II, EPA

1. Specification

ModelDY1200LBI
Frequency (Hz) :50 /60
Max. AC Output (kVA) :1.2
Rated AC Output (kVA) :1
Rated AC Voltage (V) :120, 230, 240
Power Factor (cosφ) :1
DC Output12V/4.0A
Engine Model:XY147F
Type:Forced Air-cooled, 4-storke,OHC
Displacement (cc) :72
Bore×Stroke (mm) :47×41.5
Max. Output (kW/rpm) :2.1 / 5000
Fuel:Unleaded Gasoline
Fuel Tank Capacity (L) :3.6
Continuous Operating Hours (h) :4.3
Oil:SAE 10W-30 Above SJ Grade
Oil Capacity (L)0.6
Ignition System LT.C.I.
Starting SystemRecoil
Operating Noise Level (7m)dB58
Net Dimension:  L×WX Hmm492×262×406
Overall Dimension:  L×WX Hmm525×295X 440
Net Weight / Dry weight (kg) :18.5/20.5
20GP/40GP/40HQ:420/850/1020
2. Advantages
Master gasoline Invertergenerator main features:
~1.0KW rated, 1.2KW max power inverter generator with powerful 49CC engine
~Light weight for easy portability and saving freight cost
~Compact size for economic storage and saving freight cost
~More effective engine power transmission
~Stable frequency
~Lower noise in 3/4 loading
~More beneficial to environment with less emission
~Much more safe than traditional generator:
~Avoid damage to flywheel from high speed
~Automatically cutting off output to avoid damage to applicance when overloaded
~Automatically shut-off to avoid damage to alternator when there is short circuit happened inside the alternator.

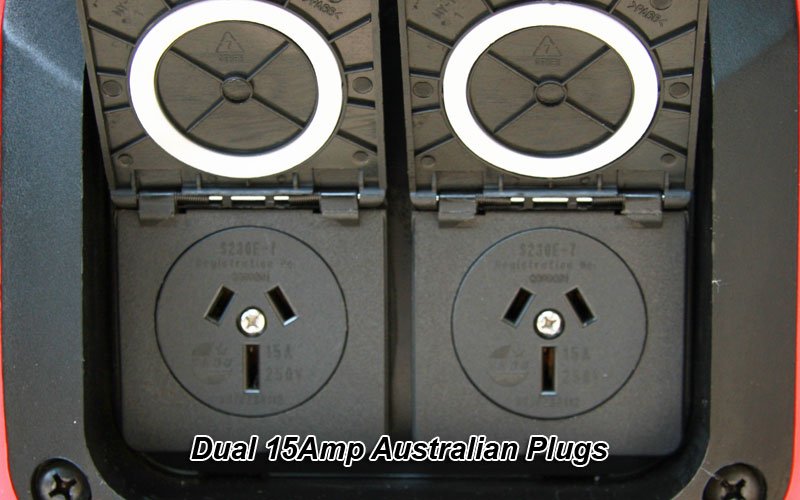

3. Availabe sockes

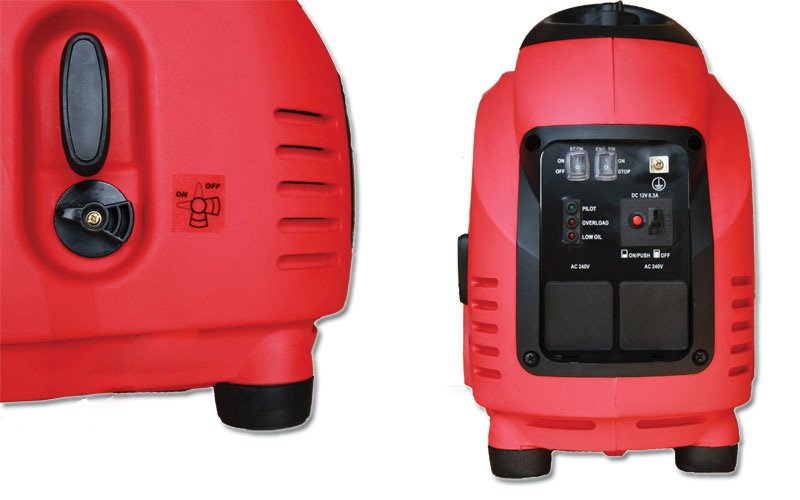

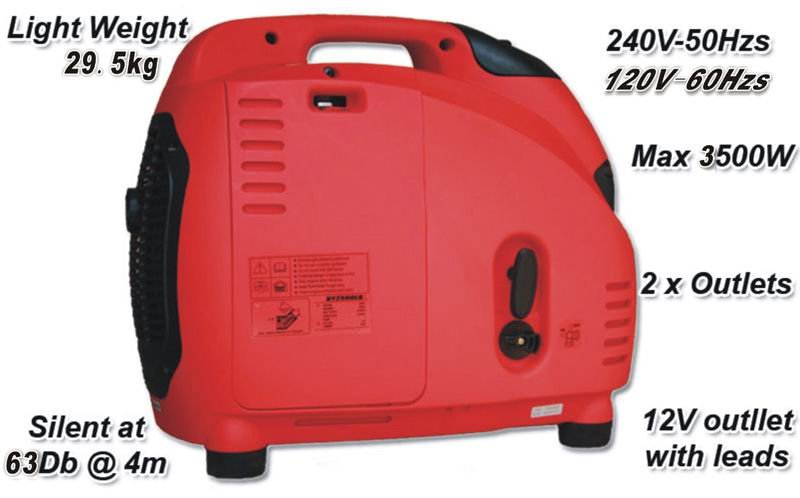

4. Pictures


5. Inspection
